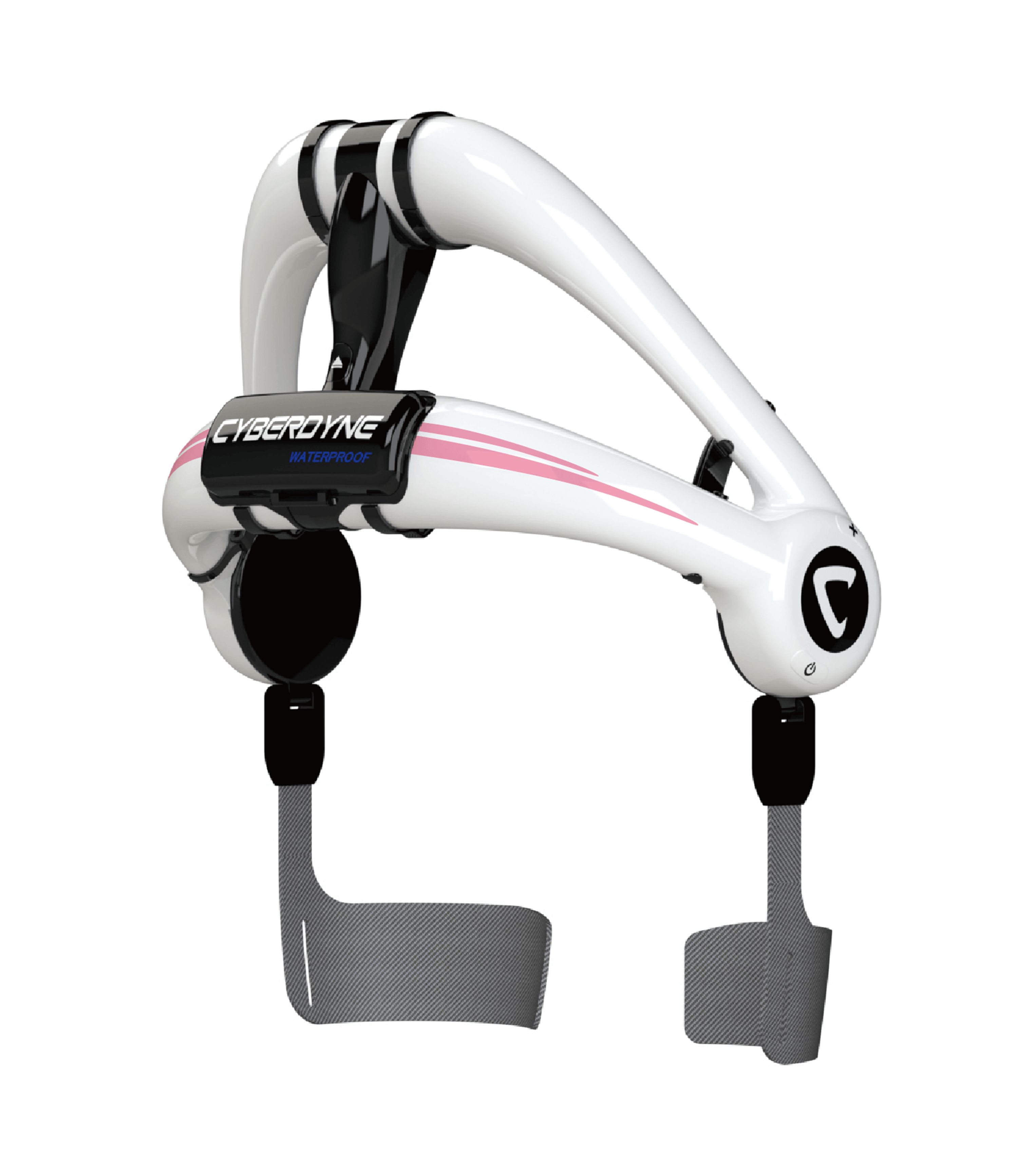

HAL Lumbar Type (HAL-BB04) (Non-medical) [ISO 13482]
HAL-BB04 can be used with or without surface electrodes for various purposes. With electrodes, just like all other HAL devices, HAL BB04 can assist in the training of the body trunk and lower limbs, encouraging more independence in functional activity. Without electrodes, it can be worn easily in less than 10 seconds, this is especially helpful for labor support or caregivers to help reduce the burden on their lower back.
Features
1. Motion assist and promotion of independence
Repeatedly performing exercises such as standing up and sitting down with HAL Lumbar Type helps to encourage independence in movement and increases the quality of life, especially in the elderly.
2. Lumbar support to reduce stress on lower back
Helps reduce the load on a person’s lower back when lifting/ moving heavy object.
3. Waterproof (IPX 4: Splashing of water)
This feature allows caregiver to bring the device into environments where it may expose to splashing of water
Specifications
| Size | 2 | S | M |
|---|---|---|---|
| Width | 396 mm | 450 mm | 510 mm |
| Depth | 230 mm | 292 mm | 292 mm |
| Height | 509 mm | 522 mm | 602 mm |
| Weight | 3.1kg (including battery pack) | ||
| Output | Max: 15Nm | Max: 30Nm | Max: 30Nm |
| Wearer hip width | ~ 30cm | 30-36cm | 36-42cm |
